Amazone | Ceus-2TX

CEUS-2TX AMAZONE

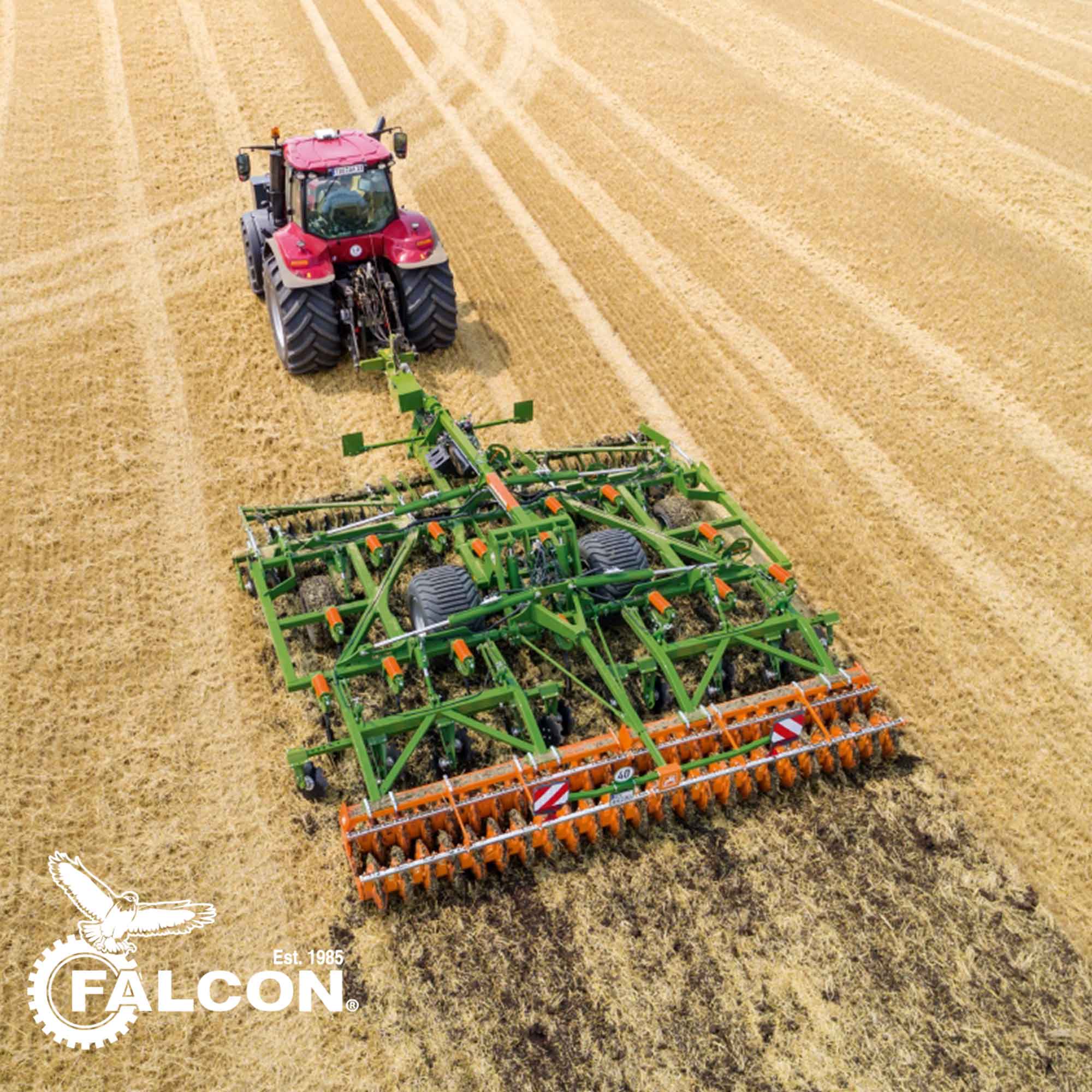

The Ceus-2TX trailed disc harrow cultivator combination, in working widths of 4 m to 7 m, is the most flexible soil tillage implement in this sector. Thanks to the combination of discs and tines, the Ceus offers, due to the many benefits taken from the AMAZONE compact disc harrows and AMAZONE mulch cultivators, the maximum potential output. The Ceus is suitable for stubble cultivation as well as primary soil tillage, topsoil deep loosening, seedbed preparation and is ideal for farms with plenty of organic matter.

• In just one pass, shallow cutting and deeply loosening soil tillage.
• Independent operation is possible with either just the disc segment or with the tine segment.
• Catros+ disc segment with maintenance-free disc bearings, stone safety protection via sprung rubber buffers and individual disc suspension.
• Cenius C-Mix Super tine segment with pressure spring overload safety protection giving a release force of more than 600 kg.
• High manoeuvrability on the headland and safe driving behaviour on the road thanks to the over-dimensioned centre running gear.
• Maximum flow through due to optimally designed row spacing of the tine section.
• Infinitely-variable hydraulic depth adjustment of the disc and tine segment and easy mechanical adjustment of the levelling section – for the comfortable adjustment in the cab with clear, easy-to-read scales.
• Intensive mixing of the soil and a reliable depth control yet, at the same time, minimum amount of fuel consumed.



Model Working Width(m) Working depth (m) Number of tines Tine spacing (mm) Number of discs Disc diameter (mm) Minimum power required from (kW)
Ceus 4000-2TX 4 0–300 10 400 32 510 150
Ceus 5000-2TX 5 0-300 12 416 40 510 185
Ceus 6000-2TX 6 0-300 15 400 48 510 220
Ceus 7000-2TX 7 0-300 17 412 56 510 260

* Refer to the price list to see the optional extras.
